Tips for CLUTCHES, Clutch Kit MONTAGERICHTING KOPPELINGSPLAAT and how it is implemented | Valeo Service

Technical Service Bulletin for CLUTCHES, Clutch Kit, 828118 - Valeo Service

MONTAGERICHTING KOPPELINGSPLAAT

De constatering

Valeo’s Technische Hotline en de garantieafdeling ontvangen regelmatig vragen met betrekking tot de montage van de koppelingsplaat uit set 828118.

&nbsp;

Verklaring

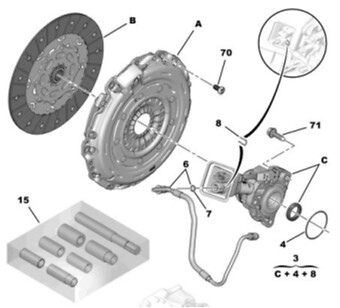

In Fig. 1 hiernaast ziet u de indeling van de koppeling volgens het Peugeot EPC-systeem. In Fig. 2 (uitsnede van Fig. 1) ziet u een uitvergroting van de koppelingsplaat. Hierop is te zien dat het centrale naafstuk naar de drukgroep, en daarmee tevens de versnellingsbak gericht is.

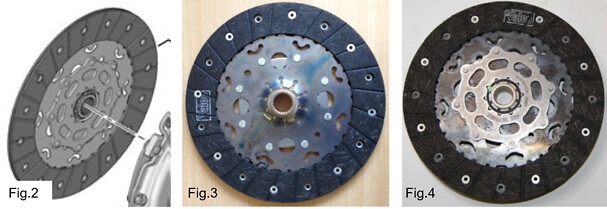

In Fig. 4&nbsp; ziet men dat het overeenkomt met Fig. 2, waar de “tandwielvormige” plaat die aan de naaf is vastgeklonken. Deze kant is ook de kant van de koppelingsplaat met nummers erop geschreven, terwijl de andere kant (Fig. 3) die niet heeft.

&nbsp;

Conclusie

De juiste montagerichting van de koppelingsplaat is dus met de zijde met “tandwielvormige” plaat en de belettering naar de versnellingsbak gericht.
